The electric roller mill is mainly suitable for electric rolling of battery materials in the laboratory, a small amount of precious metal materials such as gold and silver, and non-ferrous materials such as copper and aluminum. It is especially suitable forthinning and increasing the density of pole plates ofcl lithium battery ean energy materials. This machine adopts gear transmission to realize the roll pressing, the rolling thickness can be adjusted, and it is easy to use. It is ideal for laboratory research and development and sample production.
Marque :
ACEYNuméro d'article. :
ACEY-HFC260Personnalisation :
OEM&ODM AvailableCommande (MOQ) :
1 SetConformité :
CE CertifiedPaiement :
T/T, L/C, PayPal, West Union, Alibaba Trade Assurance, Etcgarantie :
One Year Warranty With Lifetime SupportOrigine du produit :
ChinaEmballer :
Internal: Anti-Collision Protectio, External: Plywood CaseExpédition :

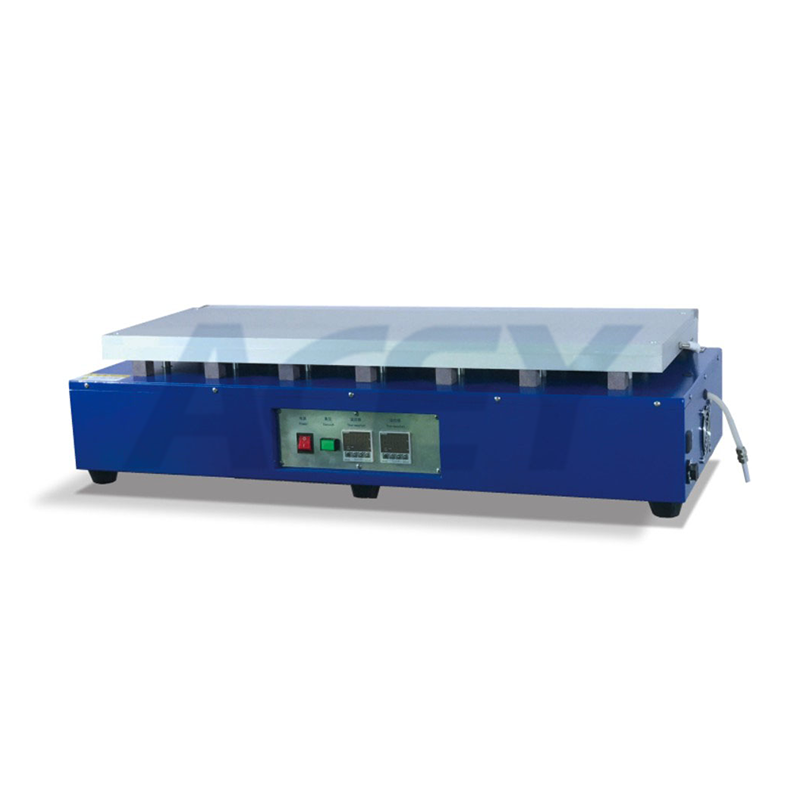

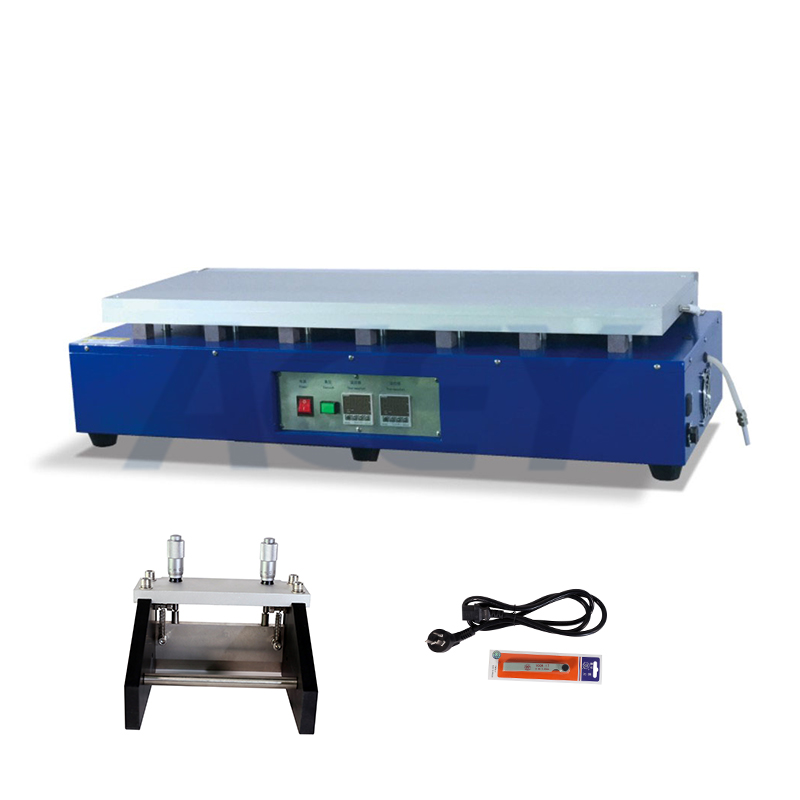

By Air, Sea, Express, etc.Heating Flat Film Coating Machine
Product Description
It is widely used in the research of various high temperature coating films, such as ceramic films, crystal films, battery material films, and special nano films; it can adapt to the development of science and technology for film formation under high temperature conditions in the future. Automatic film coating machine.
Features
*Drying heating, digital display temperature control, working temperature 130℃;
*Digital display timer, drying time can be set freely;
*The coating speed is adjustable within the range of 0～120mm/sec (lithium iron phosphate slurry);
*Vacuum aluminum plate, can quickly place or remove the substrate;
*The stroke can be adjusted by the stroke switch between 0～250mm;
*With a scraper for adjusting the thickness of the coating film (precision 0.01mm);
*Small size, can save space;
*Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;
Technical Parameters
| Roller size: | diameter Φ96mmX100mm | ||||||
| Roller cylindricity | ≤±2um. | ||||||
| Roller hardness: | HRC62 | ||||||
| Press strength: | Max:4T | ||||||
| Roller finish: | above 0.4 | ||||||
| Rolling thickness: | 0～2mm, the gap can be adjusted | ||||||
| Roll placement: | horizontal placement | ||||||
| Tablet thickness: | speed can be adjusted. | ||||||
| Power source: | voltage AC220V/50Hz, power 120W | ||||||
| Feeding speed: | 0～40mm/s | ||||||
| Dimensions: | L505mm*W365mm*H625mm | ||||||
| Equipment weight: | 65KG | ||||||
Product Display
